Ansible – Configure Windows servers as Ansible Client – winrm

Lingesh
Windows - Ansible - Automation

Windows - Ansible - Automation

Ansible is not just for Linux. It can also be used for Windows servers automation. This article will explain how to prepare windows servers for Ansible automation. Ansible uses WinRM protocol to establish a connection with Windows hosts. (i.e Linux/Unix like hosts uses SSH protocol). Ansible requires PowerShell 3.0 or newer and at least .NET 4.0 to be installed on the Windows host. Windows Server 2008 R1 will not meet the ansible requirement and mandatory components need to be upgraded. Windows Server 2008 R2 and later releases are shipping with all the required components to support ansible.

WinRM Port Details:



It’s always recommended to use a secure port (https) for Ansible automation. Passing plain text password via the insecure port is not supported.  Please go through this article to learn more about the various WinRM setup.

Option Local Accounts Active Directory Accounts Credential Delegation HTTP Encryption
Basic Yes No No No
Certificate Yes No No No
Kerberos No Yes Yes Yes
NTLM Yes Yes No Yes
CredSSP Yes Yes Yes Yes



Here, we will be talking about the basic authentication method over https.

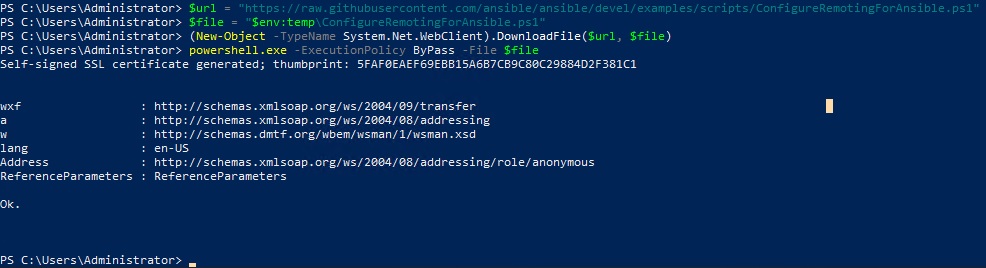

1.  Login to windows server as an administrator and execute the sequence of commands to setup WinRM for Ansible in Powershell.

Here are the commands to copy & paste to PowerShell terminal.

PS C:\Users\Administrator> $url = "https://raw.githubusercontent.com/ansible/ansible/devel/examples/scripts/ConfigureRemotingForAnsible.ps1"
PS C:\Users\Administrator> $file = "$env:temp\ConfigureRemotingForAnsible.ps1"
PS C:\Users\Administrator> (New-Object -TypeName System.Net.WebClient).DownloadFile($url, $file)
PS C:\Users\Administrator> powershell.exe -ExecutionPolicy ByPass -File $file
Self-signed SSL certificate generated; thumbprint: 5FAF0EAEF69EBB15A6B7CB9C80C29884D2F381C1


wxf                 : http://schemas.xmlsoap.org/ws/2004/09/transfer
a                   : http://schemas.xmlsoap.org/ws/2004/08/addressing
w                   : http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd
lang                : en-US
Address             : http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous
ReferenceParameters : ReferenceParameters

Ok.
PS C:\Users\Administrator>



2. If you do not have internet connection on the windows host, you can download this PowerShell script and execute it locally. Rename the file extenstion after downloading it. Execute the script in powershell terminal to setup WinRM for Ansible.

PS C:\Users\Administrator\Desktop> .\Setup-winrm-For-Ansible.ps1
Self-signed SSL certificate generated; thumbprint: 79FBCADD70DFDS778D5A4E220FA0911A72C21963E4B

wxf                 : http://schemas.xmlsoap.org/ws/2004/09/transfer
a                   : http://schemas.xmlsoap.org/ws/2004/08/addressing
w                   : http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd
lang                : en-US
Address             : http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous
ReferenceParameters : ReferenceParameters

Ok.
PS C:\Users\Administrator\Desktop>



3. Check for the window authentication method status.

PS C:\Users\Administrator\Desktop> Get-ChildItem WSMan:\localhost\Service\Auth
   WSManConfig: Microsoft.WSMan.Management\WSMan::localhost\Service\Auth
Type            Name                           SourceOfValue   Value
----            ----                           -------------   -----
System.String   Basic                                          true
System.String   Kerberos                                       true
System.String   Negotiate                                      true
System.String   Certificate                                    false
System.String   CredSSP                                        false
System.String   CbtHardeningLevel                              Relaxed



4. Run the following command to get the WinRM configuration.

PS C:\Users\Administrator\Desktop> winrm get winrm/config
Config
    MaxEnvelopeSizekb = 500
    MaxTimeoutms = 60000
    MaxBatchItems = 32000
    MaxProviderRequests = 4294967295
    Client
        NetworkDelayms = 5000
        URLPrefix = wsman
        AllowUnencrypted = false
        Auth
            Basic = true
            Digest = true
            Kerberos = true
            Negotiate = true
            Certificate = true
            CredSSP = false
        DefaultPorts
            HTTP = 5985
            HTTPS = 5986
        TrustedHosts
    Service
        RootSDDL = O:NSG:BAD:P(A;;GA;;;BA)(A;;GR;;;IU)S:P(AU;FA;GA;;;WD)(AU;SA;GXGW;;;WD)
        MaxConcurrentOperations = 4294967295
        MaxConcurrentOperationsPerUser = 1500
        EnumerationTimeoutms = 240000
        MaxConnections = 300
        MaxPacketRetrievalTimeSeconds = 120
        AllowUnencrypted = true
        Auth
            Basic = true
            Kerberos = true
            Negotiate = true
            Certificate = false
            CredSSP = false
            CbtHardeningLevel = Relaxed
        DefaultPorts
            HTTP = 5985
            HTTPS = 5986
        IPv4Filter = *
        IPv6Filter = *
        EnableCompatibilityHttpListener = false
        EnableCompatibilityHttpsListener = false
        CertificateThumbprint
        AllowRemoteAccess = true
    Winrs
        AllowRemoteShellAccess = true
        IdleTimeout = 7200000
        MaxConcurrentUsers = 10
        MaxShellRunTime = 2147483647
        MaxProcessesPerShell = 25
        MaxMemoryPerShellMB = 1024
        MaxShellsPerUser = 30

PS C:\Users\Administrator\Desktop>



5. Login to Ansible server and install “pywinrm” pythonn module to support WinRM protocal.

[root@ansible-server ~]# pip install pywinrm
Collecting pywinrm
  Using cached https://files.pythonhosted.org/packages/0d/12/13a3117bbd2230043aa32dcfa2198c33269665eaa1a8fa26174ce49b338f/pywinrm-0.3.0-py2.py3-none-any.whl
Requirement already satisfied: xmltodict in /usr/lib/python2.7/site-packages (from pywinrm) (0.11.0)
Collecting requests>=2.9.1 (from pywinrm)
  Using cached https://files.pythonhosted.org/packages/ff/17/5cbb026005115301a8fb2f9b0e3e8d32313142fe8b617070e7baad20554f/requests-2.20.1-py2.py3-none-any.whl
Collecting requests-ntlm>=0.3.0 (from pywinrm)
  Using cached https://files.pythonhosted.org/packages/03/4b/8b9a1afde8072c4d5710d9fa91433d504325821b038e00237dc8d6d833dc/requests_ntlm-1.1.0-py2.py3-none-any.whl



6. Create windows host inventory like following for testing.

[wintel]
192.168.2.16

[wintel:vars]
ansible_user=administrator
ansible_password=Password@123
ansible_connection=winrm
ansible_winrm_server_cert_validation=ignore



7. Try to ping the Wintel host using Ansible ping module.

[root@ansible-server UnixArena_Project]# ansible all -i hosts_wintel -m win_ping
192.168.2.16 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}
[root@ansible-server UnixArena_Project]#

We have got the ping pong result which confirms that Ansible is able to establish the connection with windows server.

We have successfully configured windows server to support ansible automation. Share it! Comment it !! Be Sociable !!
