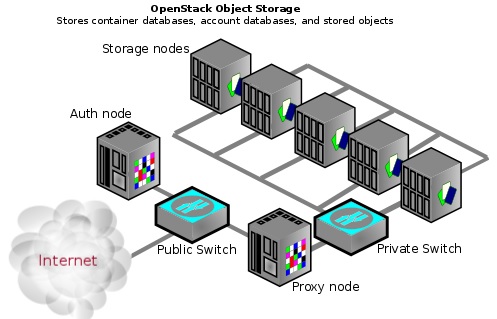

Openstack Object storage solution has been developed under the project called “swift”. It’s a multi-tenant object storage system and highly scalable one. It can manage large amounts of unstructured data at low cost through a RESTful HTTP API. swift-proxy-server service accepts OpenStack Object Storage API and raw HTTP requests to upload files, modify metadata, and create containers. It also serves file or container listings to web browsers. swift-account-server service manage accounts defined with Object Storage. swift-container-server service manages the mapping of containers /folders, within Object Storage. swift-object-server service manages actual objects,such as files, on the storage nodes.
For tutorial simplicity , we will configure the swift proxy service on Openstack controller node. For your information , you can run swift proxy on any node which are in storage node network. To improve the object storage performance , you should have multiple proxy nodes.
Configure Controller node for Object Storage:
1.Login to the Openstack Controller node.
2.Create the swift user for identity.
root@OSCTRL-UA:~# keystone user-create --name swift --pass swift123 +----------+----------------------------------+ | Property | Value | +----------+----------------------------------+ | email | | | enabled | True | | id | 47f4941be9fd421faa1cd72fb7abbb78 | | name | swift | | username | swift | +----------+----------------------------------+ root@OSCTRL-UA:~#
3.Add the admin role to the swift user.
root@OSCTRL-UA:~# keystone user-role-add --user swift --tenant service --role admin root@OSCTRL-UA:~#
4.Create the service entity.
root@OSCTRL-UA:~# keystone service-create --name swift --type object-store --description "OpenStack Object Storage" +-------------+----------------------------------+ | Property | Value | +-------------+----------------------------------+ | description | OpenStack Object Storage | | enabled | True | | id | 233aa2e309a142e188424ecbb41d1e07 | | name | swift | | type | object-store | +-------------+----------------------------------+ root@OSCTRL-UA:~#
5. Create the Object Storage service API endpoints.
root@OSCTRL-UA:~# keystone endpoint-create --service-id $(keystone service-list | awk '/ object-store / {print $2}') --publicurl 'http://OSCTRL-UA:8080/v1/AUTH_%(tenant_id)s' --internalurl 'http://OSCTRL-UA:8080/v1/AUTH_%(tenant_id)s' --adminurl http://OSCTRL-UA:8080 --region regionOne
+-------------+---------------------------------------------+
| Property | Value |
+-------------+---------------------------------------------+
| adminurl | http://OSCTRL-UA:8080 |
| id | 7f9042c48a5f401c8dd734e4047ced96 |
| internalurl | http://OSCTRL-UA:8080/v1/AUTH_%(tenant_id)s |
| publicurl | http://OSCTRL-UA:8080/v1/AUTH_%(tenant_id)s |
| region | regionOne |
| service_id | 233aa2e309a142e188424ecbb41d1e07 |
+-------------+---------------------------------------------+
root@OSCTRL-UA:~#
6. Install the swift Controller node components and swift proxy.
root@OSCTRL-UA:~# apt-get install swift swift-proxy python-swiftclient python-keystoneclient python-keystonemiddleware memcached Reading package lists... Done Building dependency tree Reading state information... Done memcached is already the newest version. python-swiftclient is already the newest version. python-swiftclient set to manually installed. The following extra packages will be installed: python-dnspython python-netifaces python-swift python-xattr Suggested packages: swift-bench The following NEW packages will be installed: python-dnspython python-netifaces python-swift python-xattr swift swift-proxy The following packages will be upgraded: python-keystoneclient python-keystonemiddleware 2 upgraded, 6 newly installed, 0 to remove and 41 not upgraded. Need to get 665 kB of archives. After this operation, 2,666 kB of additional disk space will be used. Do you want to continue? [Y/n] Y Get:1 http://ubuntu-cloud.archive.canonical.com/ubuntu/ trusty-updates/juno/main python-keystoneclient all 1:0.10.1-0ubuntu1.2~cloud0 [182 kB] Get:2 http://in.archive.ubuntu.com/ubuntu/ trusty/main python-dnspython all 1.11.1-1build1 [83.1 kB] Get:3 http://ubuntu-cloud.archive.canonical.com/ubuntu/ trusty-updates/juno/main python-keystonemiddleware all 1.0.0-1ubuntu0.14.10.3~cloud0 [52.3 kB] Get:4 http://ubuntu-cloud.archive.canonical.com/ubuntu/ trusty-updates/juno/main python-swift all 2.2.0-0ubuntu1.1~cloud0 [280 kB] Get:5 http://ubuntu-cloud.archive.canonical.com/ubuntu/ trusty-updates/juno/main swift all 2.2.0-0ubuntu1.1~cloud0 [25.7 kB] Get:6 http://ubuntu-cloud.archive.canonical.com/ubuntu/ trusty-updates/juno/main swift-proxy all 2.2.0-0ubuntu1.1~cloud0 [18.6 kB] Get:7 http://in.archive.ubuntu.com/ubuntu/ trusty/main python-netifaces amd64 0.8-3build1 [11.3 kB] Get:8 http://in.archive.ubuntu.com/ubuntu/ trusty/main python-xattr amd64 0.6.4-2build1 [12.5 kB] Fetched 665 kB in 7s (88.2 kB/s) (Reading database ... 113822 files and directories currently installed.) Preparing to unpack .../python-keystoneclient_1%3a0.10.1-0ubuntu1.2~cloud0_all.deb ... Unpacking python-keystoneclient (1:0.10.1-0ubuntu1.2~cloud0) over (1:0.10.1-0ubuntu1.1~cloud0) ... Preparing to unpack .../python-keystonemiddleware_1.0.0-1ubuntu0.14.10.3~cloud0_all.deb ... Unpacking python-keystonemiddleware (1.0.0-1ubuntu0.14.10.3~cloud0) over (1.0.0-1ubuntu0.14.10.2~cloud0) ... Selecting previously unselected package python-dnspython. Preparing to unpack .../python-dnspython_1.11.1-1build1_all.deb ... Unpacking python-dnspython (1.11.1-1build1) ... Selecting previously unselected package python-netifaces. Preparing to unpack .../python-netifaces_0.8-3build1_amd64.deb ... Unpacking python-netifaces (0.8-3build1) ... Selecting previously unselected package python-xattr. Preparing to unpack .../python-xattr_0.6.4-2build1_amd64.deb ... Unpacking python-xattr (0.6.4-2build1) ... Selecting previously unselected package python-swift. Preparing to unpack .../python-swift_2.2.0-0ubuntu1.1~cloud0_all.deb ... Unpacking python-swift (2.2.0-0ubuntu1.1~cloud0) ... Selecting previously unselected package swift. Preparing to unpack .../swift_2.2.0-0ubuntu1.1~cloud0_all.deb ... Unpacking swift (2.2.0-0ubuntu1.1~cloud0) ... Selecting previously unselected package swift-proxy. Preparing to unpack .../swift-proxy_2.2.0-0ubuntu1.1~cloud0_all.deb ... Unpacking swift-proxy (2.2.0-0ubuntu1.1~cloud0) ... Processing triggers for man-db (2.6.7.1-1ubuntu1) ... Processing triggers for ureadahead (0.100.0-16) ... ureadahead will be reprofiled on next reboot Setting up python-keystoneclient (1:0.10.1-0ubuntu1.2~cloud0) ... Setting up python-keystonemiddleware (1.0.0-1ubuntu0.14.10.3~cloud0) ... Setting up python-dnspython (1.11.1-1build1) ... Setting up python-netifaces (0.8-3build1) ... Setting up python-xattr (0.6.4-2build1) ... Setting up python-swift (2.2.0-0ubuntu1.1~cloud0) ... Setting up swift (2.2.0-0ubuntu1.1~cloud0) ... Setting up swift-proxy (2.2.0-0ubuntu1.1~cloud0) ... Processing triggers for ureadahead (0.100.0-16) ... root@OSCTRL-UA:~#
7.Create the /etc/swift directory and download the swift proxy sample configuration from repository.
root@OSCTRL-UA:~# mkdir -p /etc/swift
root@OSCTRL-UA:~# cd /etc/swift
root@OSCTRL-UA:/etc/swift# curl -o /etc/swift/proxy-server.conf https://raw.githubusercontent.com/openstack/swift/stable/juno/etc/proxy-server.conf-sample
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 24714 100 24714 0 0 6573 0 0:00:03 0:00:03 --:--:-- 6586
root@OSCTRL-UA:/etc/swift#
8.Edit the “/etc/swift/proxy-server.conf” file on the below sections.
In the default section,
[DEFAULT] ... bind_port = 8080 user = swift swift_dir = /etc/swift
In the “pipeline:main” section.
[pipeline:main] pipeline = authtoken cache healthcheck keystoneauth proxy-logging proxy-server
In “app:proxy-server” section,
[app:proxy-server] allow_account_management = true account_autocreate = true use = egg:swift#proxy
In “filter:keystoneauth” section,
[filter:keystoneauth] use = egg:swift#keystoneauth operator_roles = admin,_member_
In “filter:authtoken” section,
[filter:authtoken] paste.filter_factory = keystonemiddleware.auth_token:filter_factory auth_uri = http://OSCTRL-UA:5000/v2.0 identity_uri = http://OSCTRL-UA:35357 admin_tenant_name = service admin_user = swift admin_password = swift123 delay_auth_decision = 1
In “filter:cache” section,
[filter:cache] use = egg:swift#memcache memcache_servers = 127.0.0.1:11211
We have successfully configured the Object service for controller node. In the next article, we will see that how to configure the swift storage server.
