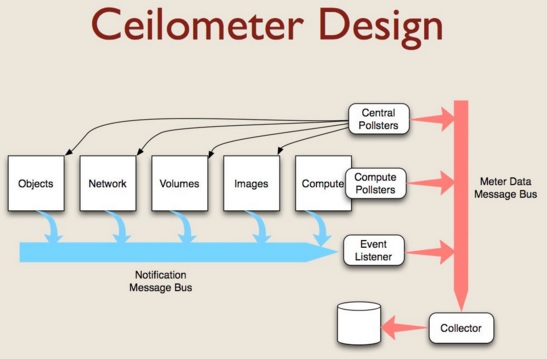

This article will demonstrates the deployment of telemetry modules on Openstack environment. The telemetry services are developed in the name of ceilometer. Ceilometer provides a framework for monitoring, alarming and metering the OpenStack cloud resources. The Ceilometer efficiently polls metering data related to OpenStack services. It collects event & metering data by monitoring notifications sent from OpenStack services. It publishes collected data to various API targets including data-stores and message-queues. Ceilometer creates an alarm when collected data breaks defined rules.
All the telemetry services will use the messaging bus to communicate with other OpenStack components.
Telemetry Components:
- ceilometer-agent-compute
- ceilometer-agent-central
- ceilometer-agent-notification
- ceilometer-collector
- ceilometer-alarm-evaluator
- ceilometer-alarm-notifier
- ceilometer-api
Configure Controller Node for Celiometer – Prerequisites:
1.Login to the Openstack controller node.
2. Install MongoDB for telemetry services.
root@OSCTRL-UA:~# apt-get install mongodb-server mongodb-clients python-pymongo Reading package lists... Done Building dependency tree Reading state information... Done The following extra packages will be installed: libboost-filesystem1.54.0 libboost-program-options1.54.0 libgoogle-perftools4 libpcrecpp0 libsnappy1 libtcmalloc-minimal4 libunwind8 libv8-3.14.5 python-bson python-bson-ext python-gridfs python-pymongo-ext 0 upgraded, 15 newly installed, 0 to remove and 44 not upgraded. Need to get 14.7 MB of archives. After this operation, 114 MB of additional disk space will be used. Do you want to continue? [Y/n] Y
3. Edit the /etc/mongodb.conf and update the below sections.
Update the bind_ip as controller node IP.
bind_ip = 192.168.203.130
Add the key to reduce the journel file size for mongoDB.
smallfiles = true
4. Stop the mongoDB and remove the journal files if any. Once it’s done you can start the MongoDB to take effect of new settings.
root@OSCTRL-UA:~# service mongodb stop mongodb stop/waiting root@OSCTRL-UA:~# rm /var/lib/mongodb/journal/prealloc.* rm: cannot remove ‘/var/lib/mongodb/journal/prealloc.*’: No such file or directory root@OSCTRL-UA:~# service mongodb start mongodb start/running, process 36834 root@OSCTRL-UA:~#
5. Create the celiometer database on MongoDB.
root@OSCTRL-UA:~# mongo --host OSCTRL-UA --eval 'db = db.getSiblingDB("ceilometer");db.addUser({user: "ceilometer",pwd: "ceilometerdb123",roles: [ "readWrite", "dbAdmin" ]})'
MongoDB shell version: 2.4.9
connecting to: OSCTRL-UA:27017/test
{
"user" : "ceilometer",
"pwd" : "4a434c760e1711668b029ab0a744b61f",
"roles" : [
"readWrite",
"dbAdmin"
],
"_id" : ObjectId("5628e718d34ba80568d83895")
}
root@OSCTRL-UA:~#
6.Source the admin credentials to gain the CLI access.
root@OSCTRL-UA:~# cat admin.rc export OS_USERNAME=admin export OS_PASSWORD=admin123 export OS_TENANT_NAME=admin export OS_AUTH_URL=http://OSCTRL-UA:35357/v2.0 root@OSCTRL-UA:~#
7.Create the ceilometer user on keystone.
root@OSCTRL-UA:~# keystone user-create --name ceilometer --pass ceilometer123 +----------+----------------------------------+ | Property | Value | +----------+----------------------------------+ | email | | | enabled | True | | id | a51353508ecf415fb0e7e8170300baf8 | | name | ceilometer | | username | ceilometer | +----------+----------------------------------+ root@OSCTRL-UA:~#
8. Add the ceilometer to the admin role.
root@OSCTRL-UA:~# keystone user-role-add --user ceilometer --tenant service --role admin root@OSCTRL-UA:~#
9.Create ceilometer service entity.
root@OSCTRL-UA:~# keystone service-create --name ceilometer --type metering --description "Telemetry" +-------------+----------------------------------+ | Property | Value | +-------------+----------------------------------+ | description | Telemetry | | enabled | True | | id | d4371a7560d243bcb48e9db4d49ce7e1 | | name | ceilometer | | type | metering | +-------------+----------------------------------+ root@OSCTRL-UA:~#
10. Create the Ceilometer API endpoints.
root@OSCTRL-UA:~# keystone endpoint-create --service-id $(keystone service-list | awk '/ metering / {print $2}') --publicurl http://OSCTRL-UA:8777 --internalurl http://OSCTRL-UA:8777 --adminurl http://OSCTRL-UA:8777 --region regionOne
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| adminurl | http://OSCTRL-UA:8777 |
| id | b4534beb489d45af8af3aa62ede17053 |
| internalurl | http://OSCTRL-UA:8777 |
| publicurl | http://OSCTRL-UA:8777 |
| region | regionOne |
| service_id | d4371a7560d243bcb48e9db4d49ce7e1 |
+-------------+----------------------------------+
root@OSCTRL-UA:~#
Install & Configure Ceilometer:
1. Login to the controller node.
2. Install the Ceilometer controller node packages.
root@OSCTRL-UA:~# apt-get install ceilometer-api ceilometer-collector ceilometer-agent-central ceilometer-agent-notification ceilometer-alarm-evaluator ceilometer-alarm-notifier python-ceilometerclient Reading package lists... Done Building dependency tree Reading state information... Done python-ceilometerclient is already the newest version. python-ceilometerclient set to manually installed. The following extra packages will be installed: smitools 0 upgraded, 38 newly installed, 0 to remove and 44 not upgraded. Need to get 4,504 kB of archives. After this operation, 28.4 MB of additional disk space will be used. Do you want to continue? [Y/n] Y
3. Generate the random HEX value for Ceilometer.
root@OSCTRL-UA:~# openssl rand -hex 10 9342b8f01c16142bdeab root@OSCTRL-UA:~#
4.Edit the /etc/ceilometer/ceilometer.conf file and update the following sections.
In [database] section,
[database] connection = mongodb://ceilometer:ceilometerdb123@OSCTRL-UA:27017/ceilometer
In [DEFAULT] section,
[DEFAULT] rpc_backend = rabbit rabbit_host = OSCTRL-UA rabbit_password = rabbit123 auth_strategy = keystone
In “[keystone_authtoken]” section,
[keystone_authtoken] auth_uri = http://OSCTRL-UA:5000/v2.0 identity_uri = http://OSCTRL-UA:35357 admin_tenant_name = service admin_user = ceilometer admin_password = ceilometer123
In [service_credentials] section,
[service_credentials] os_auth_url = http://OSCTRL-UA:5000/v2.0 os_username = ceilometer os_tenant_name = service os_password = ceilometer123
In “[publisher]” section , update the metering secret key which we have generated in the previous step.
[publisher] metering_secret = 9342b8f01c16142bdeab
5. Restart the ceilometer services to take effect of the new changes.
root@OSCTRL-UA:~# service ceilometer-agent-central restart ceilometer-agent-central stop/waiting ceilometer-agent-central start/running, process 38562 root@OSCTRL-UA:~# service ceilometer-agent-notification restart ceilometer-agent-notification stop/waiting ceilometer-agent-notification start/running, process 38587 root@OSCTRL-UA:~# service ceilometer-api restart ceilometer-api stop/waiting ceilometer-api start/running, process 38607 root@OSCTRL-UA:~# service ceilometer-collector restart ceilometer-collector stop/waiting ceilometer-collector start/running, process 38626 root@OSCTRL-UA:~# service ceilometer-alarm-evaluator restart ceilometer-alarm-evaluator stop/waiting ceilometer-alarm-evaluator start/running, process 38648 root@OSCTRL-UA:~# service ceilometer-alarm-notifier restart ceilometer-alarm-notifier stop/waiting ceilometer-alarm-notifier start/running, process 38667 root@OSCTRL-UA:~#
Configure the Compute service for Telemetry:
1. Login to the compute node.
2. Install the telemetry compute service agent packages.
root@OSCMP-UA:~# apt-get install ceilometer-agent-compute Reading package lists... Done Building dependency tree Reading state information... Done The following extra packages will be installed: 0 upgraded, 40 newly installed, 0 to remove and 43 not upgraded. Need to get 4,715 kB of archives. After this operation, 29.8 MB of additional disk space will be used. Do you want to continue? [Y/n] y
3.Edit the /etc/ceilometer/ceilometer.conf file and update the following sections.
In [DEFAULT] section,
[DEFAULT] rpc_backend = rabbit rabbit_host = OSCTRL-UA rabbit_password = rabbit123 auth_strategy = keystone
In “[keystone_authtoken]” section,
[keystone_authtoken] auth_uri = http://OSCTRL-UA:5000/v2.0 identity_uri = http://OSCTRL-UA:35357 admin_tenant_name = service admin_user = ceilometer admin_password = ceilometer123
In [service_credentials] section,
[service_credentials] os_auth_url = http://OSCTRL-UA:5000/v2.0 os_username = ceilometer os_tenant_name = service os_password = ceilometer123 os_endpoint_type = internalURL os_region_name = regionOne
In “[publisher]” section , update the metering secret key.
[publisher] metering_secret = 9342b8f01c16142bdeab
4. Edit the /etc/nova/nova.conf and update the default section.
[DEFAULT] ........... instance_usage_audit = True instance_usage_audit_period = hour notify_on_state_change = vm_and_task_state notification_driver = messagingv2
5. Restart the ceilometer compute agent.
root@OSCMP-UA:~# service ceilometer-agent-compute restart ceilometer-agent-compute stop/waiting ceilometer-agent-compute start/running, process 43580 root@OSCMP-UA:~#
6. Restart the nova-compute service to complete the installation.
root@OSCMP-UA:~# service nova-compute restart nova-compute stop/waiting nova-compute start/running, process 43646 root@OSCMP-UA:~#
Configure the Image service to use the Ceilometer:
1. Login to the controller node. (which acts as glance image server as well).
2. Edit the /etc/glance/glance-api.conf and /etc/glance/glance-registry.conf files and update the default sections.
[DEFAULT] ... notification_driver = messagingv2
3. Restart the glance services.
root@OSCTRL-UA:~# service glance-registry restart glance-registry stop/waiting glance-registry start/running, process 38886 root@OSCTRL-UA:~# service glance-api restart glance-api stop/waiting glance-api start/running, process 38902 root@OSCTRL-UA:~#
Configure the Block Storage service to use Ceilometer:
1. Login to the controller node and Storage node.
2.Edit the /etc/cinder/cinder.conf file and update the default section on both controller node & Storage node.
[DEFAULT] ... control_exchange = cinder notification_driver = messagingv2
3. In the controller node , restart the storage services.
root@OSCTRL-UA:~# service cinder-api restart cinder-api stop/waiting cinder-api start/running, process 39005 root@OSCTRL-UA:~# service cinder-scheduler restart cinder-scheduler stop/waiting cinder-scheduler start/running, process 39026 root@OSCTRL-UA:~#
4.In Storage node, restart the storage services.
root@OSSTG-UA:~# service cinder-volume restart cinder-volume stop/waiting cinder-volume start/running, process 32018 root@OSSTG-UA:~#
Configure the Object Storage service to use Ceilometer:
1. The Telemetry service requires access to the Object Storage service using the ResellerAdmin role. Create the “ResellerAdmin” role. Source the admin credentials to use the CLI commands.
root@OSCTRL-UA:~# cat admin.rc export OS_USERNAME=admin export OS_PASSWORD=admin123 export OS_TENANT_NAME=admin export OS_AUTH_URL=http://OSCTRL-UA:35357/v2.0 root@OSCTRL-UA:~# source admin.rc root@OSCTRL-UA:~# root@OSCTRL-UA:~# keystone role-create --name ResellerAdmin +----------+----------------------------------+ | Property | Value | +----------+----------------------------------+ | id | 443599f36fd84821877a460825144ade | | name | ResellerAdmin | +----------+----------------------------------+ root@OSCTRL-UA:~#
2.Add the “ResellerAdmin” role to ceilometer user.
root@OSCTRL-UA:~# keystone user-role-add --tenant service --user ceilometer --role 443599f36fd84821877a460825144ade root@OSCTRL-UA:~#
3.To Configure the notifications, edit the /etc/swift/proxy-server.conf file and update the following section.
In the [filter:keystoneauth] section, add the ResellerAdmin role,
[filter:keystoneauth] ... operator_roles = admin,_member_,ResellerAdmin
In the “[pipeline:main]” section,
[pipeline:main] ... pipeline = authtoken cache healthcheck keystoneauth proxy-logging ceilometer proxy-server
Create the [filter:ceilometer] section and update like below to configure the notification.
[filter:ceilometer] use = egg:ceilometer#swift log_level = WARN
4. Add the “swift” user to the ceilometer group.
root@OSCTRL-UA:~# usermod -a -G ceilometer swift root@OSCTRL-UA:~# id -a swift uid=118(swift) gid=125(swift) groups=125(swift),4(adm),128(ceilometer) root@OSCTRL-UA:~#
5. Restart the Object proxy service.
root@OSCTRL-UA:~# service swift-proxy restart swift-proxy stop/waiting swift-proxy start/running root@OSCTRL-UA:~#
Verify the Telemetry Configuration:
1. Login to the controller node .
2. Source the admin credentials.
root@OSCTRL-UA:~# cat admin.rc export OS_USERNAME=admin export OS_PASSWORD=admin123 export OS_TENANT_NAME=admin export OS_AUTH_URL=http://OSCTRL-UA:35357/v2.0 root@OSCTRL-UA:~# source admin.rc root@OSCTRL-UA:~#
3. List the available meters.
root@OSCTRL-UA:~# ceilometer meter-list <<<Removed due to huge output list>>>
4. Download the OS image for testing purpose.
root@OSCTRL-UA:~# glance image-list +--------------------------------------+---------------------+-------------+------------------+----------+--------+ | ID | Name | Disk Format | Container Format | Size | Status | +--------------------------------------+---------------------+-------------+------------------+----------+--------+ | 7d19b639-6950-42dc-a64d-91c6662e0613 | CirrOS 0.3.0 | qcow2 | bare | 9761280 | active | | 95fafce7-ae0f-47e3-b1c9-5d2ebd1af885 | CirrOS-0.3.4-x86_64 | qcow2 | bare | 13287936 | active | +--------------------------------------+---------------------+-------------+------------------+----------+--------+ root@OSCTRL-UA:~# glance image-download "CirrOS-0.3.4-x86_64" > cirros.img_test root@OSCTRL-UA:~#
5. List available meters again to validate detection of the image download.
root@OSCTRL-UA:~# ceilometer meter-list |grep download | image.download | delta | B | 95fafce7-ae0f-47e3-b1c9-5d2ebd1af885 | d154aa743ab4405c80055236c47ed98f | d14d6a07f862482398b3e3e4e8d581c6 | root@OSCTRL-UA:~#
6. Retrieve the usage statics.
root@OSCTRL-UA:~# ceilometer statistics -m image.download +--------+----------------------------+----------------------------+------------+------------+------------+------------+-------+----------+----------------------------+----------------------------+ | Period | Period Start | Period End | Max | Min | Avg | Sum | Count | Duration | Duration Start | Duration End | +--------+----------------------------+----------------------------+------------+------------+------------+------------+-------+----------+----------------------------+----------------------------+ | 0 | 2015-10-22T14:46:10.946043 | 2015-10-22T14:46:10.946043 | 13287936.0 | 13287936.0 | 13287936.0 | 13287936.0 | 1 | 0.0 | 2015-10-22T14:46:10.946043 | 2015-10-22T14:46:10.946043 | +--------+----------------------------+----------------------------+------------+------------+------------+------------+-------+----------+----------------------------+----------------------------+ root@OSCTRL-UA:~#
The above command output confirms that telemetry service is working fine. Now our Openstack environment includes the telemetry service to measure the resource usage.
