Sun Cluster – How to Configure Zone Cluster on Solaris ?

This article will walk you through the zone cluster deployment on oracle Solaris. The zone cluster consists of a set of zones, where each zone represents a virtual node. Each zone of a zone cluster is configured on a separate machine. As such, the upper bound on the number of virtual nodes in a zone cluster is limited to the number of machines in the global cluster. The zone cluster design introduces a new brand of zone, called the cluster brand. The cluster brand is based on the original native brand type, and adds enhancements for clustering. The BrandZ framework provides numerous hooks where other software can take action appropriate for the brand type of zone. For example, there is a hook for software to be called during the zone boot, and zone clusters take advantage of this hook to inform the cluster software about the boot of the virtual node. Because zone clusters use the BrandZ framework, at a minimum Oracle Solaris 10 5/08 is required.

The system maintains membership information for zone clusters. Each machine hosts a component, called the Zone Cluster Membership Monitor (ZCMM), that monitors the status of all cluster brand zones on that machine. The ZCMM knows which zones belong to which zone clusters.  Zone clusters are considerably simpler than global clusters. For example, there are no quorum devices in a zone cluster, as a quorum device is not needed.

clzonecluster is a utility to create , modify , delete and manage the zone cluster on sun cluster environment.

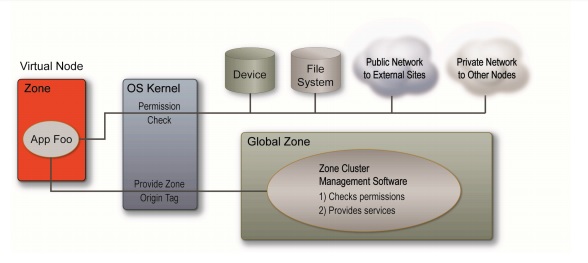

Zone uses the global zone physical resoruces
Zone uses the global zone physical resoruces



Note:
Sun Cluster is a product where zone cluster is one of the cluster type in sun cluster.



Environment:

  • Operating System : Oracle Solaris 10 u9
  • Cluster : Sun Cluster 3.3 (aka Oracle Solaris cluster 3.3)



Prerequisites :

  • Two Oracle Solaris 10 u9 nodes or above
  • Sun Cluster 3.3 package



Step : 1  Create a global cluster:

The following listed articles will help you to install and configure two node sun cluster on oracle Solaris 10.



Step: 2  Create a zone cluster inside the global cluster:

1. Login to one of the cluster node (Global zone).

2. Ensure that node of the global cluster is in cluster mode.

UASOL2:#clnode status
=== Cluster Nodes ===

--- Node Status ---
Node Name                                       Status
---------                                       ------
UASOL2                                          Online
UASOL1                                          Online
UASOL2:#



3. You must keep the zone path ready for local zone installation on both the cluster nodes. Zone path must be identical on both the nodes.  On Node UASOL1 ,

UASOL1:#zfs list |grep /export/zones/uainfrazone
rpool/export/zones/uainfrazone   149M  4.54G   149M  /export/zones/uainfrazone
UASOL1:#

On Node UASOL2,

UASOL2:#zfs list |grep /export/zones/uainfrazone
rpool/export/zones/uainfrazone   149M  4.24G   149M  /export/zones/uainfrazone
UASOL2:#



4. Create a new zone cluster.

Note:
• By default, sparse root zones are created. To create whole root zones, add the -b option to the create command.
• Specifying an IP address and NIC for each zone cluster node is optional.

UASOL1:#clzonecluster configure uainfrazone
uainfrazone: No such zone cluster configured
Use 'create' to begin configuring a new zone cluster.
clzc:uainfrazone> create
clzc:uainfrazone> set zonepath=/export/zones/uainfrazone
clzc:uainfrazone>  add node
clzc:uainfrazone:node> set physical-host=UASOL1
clzc:uainfrazone:node> set hostname=uainfrazone1
clzc:uainfrazone:node> add net
clzc:uainfrazone:node:net> set address=192.168.2.101
clzc:uainfrazone:node:net> set physical=e1000g0
clzc:uainfrazone:node:net> end
clzc:uainfrazone:node> end
clzc:uainfrazone> add sysid
clzc:uainfrazone:sysid> set root_password="H/80/NT4F2H7g"
clzc:uainfrazone:sysid> end
clzc:uainfrazone> verify
clzc:uainfrazone> commit
clzc:uainfrazone> exit
UASOL1:#
  • Cluster Name = uainfrazone
  • Zone Path = /export/zones/uainfrazone
  • physical-host = UASOL1 (Where the uainfrazone1 should be configured)
  • set hostname = uainfrazone1 (zone cluster node name)
  • Zone IP Address (Optional)=192.168.2.101



Here , we have just configured one zone on UASOL1 . Clustering make sense when you configure with two or more nodes. So let me create a one more zone on UASOL2 node in same zone cluster.

UASOL1:#clzonecluster configure uainfrazone
clzc:uainfrazone> add node
clzc:uainfrazone:node> set physical-host=UASOL2
clzc:uainfrazone:node> set hostname=uainfrazone2
clzc:uainfrazone:node> add net
clzc:uainfrazone:node:net> set address=192.168.2.103
clzc:uainfrazone:node:net> set physical=e1000g0
clzc:uainfrazone:node:net> end
clzc:uainfrazone:node> end
clzc:uainfrazone> commit
clzc:uainfrazone> info
zonename: uainfrazone
zonepath: /export/zones/uainfrazone
autoboot: true
hostid:
brand: cluster
bootargs:
pool:
limitpriv:
scheduling-class:
ip-type: shared
enable_priv_net: true
inherit-pkg-dir:
        dir: /lib
inherit-pkg-dir:
        dir: /platform
inherit-pkg-dir:
        dir: /sbin
inherit-pkg-dir:
        dir: /usr
sysid:
        root_password: H/80/NT4F2H7g
        name_service: NONE
        nfs4_domain: dynamic
        security_policy: NONE
        system_locale: C
        terminal: xterm
        timezone: Asia/Calcutta
node:
        physical-host: UASOL1
        hostname: uainfrazone1
        net:
                address: 192.168.2.101
                physical: e1000g0
                defrouter not specified
node:
        physical-host: UASOL2
        hostname: uainfrazone2
        net:
                address: 192.168.2.103
                physical: e1000g0
                defrouter not specified
clzc:uainfrazone> exit
  • Cluster Name = uainfrazone
  • Zone Path = /export/zones/uainfrazone
  • physical-host = UASOL2 (Where the uainfrazone2 should be configured)
  • set hostname = uainfrazone2 (zone cluster node name)
  • Zone IP Address (Optional)=192.168.2.103

The encrypted root password is “root123” .   (Zone’s root password.)



5. Verify the zone cluster.

UASOL2:#clzonecluster verify uainfrazone
Waiting for zone verify commands to complete on all the nodes of the zone cluster "uainfrazone"...
UASOL2:#



6. Check the zone cluster status. At this stage zones are in configured status.

UASOL2:#clzonecluster status uainfrazone

=== Zone Clusters ===

--- Zone Cluster Status ---

Name          Node Name   Zone Host Name   Status    Zone Status
----          ---------   --------------   ------    -----------
uainfrazone   UASOL1      uainfrazone1     Offline   Configured
              UASOL2      uainfrazone2     Offline   Configured

UASOL2:#



7. Install the zones using following command.

UASOL2:#clzonecluster install uainfrazone
Waiting for zone install commands to complete on all the nodes of the zone cluster "uainfrazone"...
UASOL2:#
UASOL2:#zoneadm list -cv
  ID NAME             STATUS     PATH                           BRAND    IP
   0 global           running    /                              native   shared
   - uainfrazone      installed  /export/zones/uainfrazone      cluster  shared
UASOL2:#



Here you can see that uainfrazone is created and installed. You should be able to see the same on UASOL1 as well.

UASOL1:#zoneadm list -cv
  ID NAME             STATUS     PATH                           BRAND    IP
   0 global           running    /                              native   shared
   - uainfrazone      installed  /export/zones/uainfrazone      cluster  shared
UASOL1:#

Note: There is no difference if you run a command from UASOL1 or UASOL2 since both are in cluster.



8.Bring up the zones using clzonecluster . (You should not use zoneadm command to boot the zones)

UASOL1:#clzonecluster boot  uainfrazone
Waiting for zone boot commands to complete on all the nodes of the zone cluster "uainfrazone"...
UASOL1:#
UASOL1:#zoneadm list -cv
  ID NAME             STATUS     PATH                           BRAND    IP
   0 global           running    /                              native   shared
   1 uainfrazone      running    /export/zones/uainfrazone      cluster  shared
UASOL1:#



In UASOL2,

UASOL2:#zoneadm list -cv
  ID NAME             STATUS     PATH                           BRAND    IP
   0 global           running    /                              native   shared
   3 uainfrazone      running    /export/zones/uainfrazone      cluster  shared
UASOL2:#



9. Check the zone cluster status.

UASOL1:#clzonecluster status uainfrazone
=== Zone Clusters ===

--- Zone Cluster Status ---
Name          Node Name   Zone Host Name   Status    Zone Status
----          ---------   --------------   ------    -----------
uainfrazone   UASOL1      uainfrazone1     Offline   Running
              UASOL2      uainfrazone2     Offline   Running
UASOL1:#



10. Zones will reboot automatically for sysconfig. You could see that when you access the zone’s console.

UASOL1:#zlogin -C uainfrazone
[Connected to zone 'uainfrazone' console]                                                                                                                         168/168
Creating new rsa public/private host key pair
Creating new dsa public/private host key pair
Configuring network interface addresses: clprivnet0.

rebooting system due to change(s) in /etc/default/init

Apr 10 13:21:47 Cluster.Framework: cl_execd: Going down on signal 15.
Apr 10 13:21:47 Cluster.Framework: cl_execd: Going down on signal 15.

[NOTICE: Zone rebooting]

SunOS Release 5.10 Version Generic_147148-26 64-bit
Copyright (c) 1983, 2013, Oracle and/or its affiliates. All rights reserved.
Hostname: uainfrazone1

uainfrazone1 console login:



11. Check the zone cluster status.

UASOL2:#clzonecluster status
=== Zone Clusters ===

--- Zone Cluster Status ---
Name          Node Name   Zone Host Name   Status   Zone Status
----          ---------   --------------   ------   -----------
uainfrazone   UASOL1      uainfrazone1     Online   Running
              UASOL2      uainfrazone2     Online   Running
UASOL2:#



We have successfully configured the two node zone cluster. What’s Next ? You should login to one of the  zone  and configure the resource group and resources.  Just login to any one of the local zone and check the cluster status.

UASOL2:#zlogin uainfrazone
[Connected to zone 'uainfrazone' pts/2]
Last login: Mon Apr 11 01:58:20 on pts/2
Oracle Corporation      SunOS 5.10      Generic Patch   January 2005
# bash
bash-3.2# export PATH=/usr/cluster/bin:$PATH
bash-3.2# clnode status
=== Cluster Nodes ===

--- Node Status ---
Node Name                                       Status
---------                                       ------
uainfrazone1                                    Online
uainfrazone2                                    Online
bash-3.2#

Similar to this , you could create a N-number of zone cluster under the global cluster. These zone cluster uses the host’s private network and other required resources.   In the next article, we will see that how to configure the resource group on local zone.



Hope this article is informative to you.
