Cisco UCS – How to Configure WWN Pools ?

In Cisco UCS domain , we need to create WWNN (World wide Node names) and WWPN  (World Wide Port Names) manually  to use the Fibre Channel vHBAs .  World Wide Node Name is assigned to the blades and World Wide Port Name is assigned to vHBA (Virtual Host Bus adaptor).  According to the cisco notes,  A WWN pool can include only WWNNs or WWPNs in the ranges from 20:00:00:00:00:00:00:00 to 20:FF:FF:FF:FF:FF:FF:FF or from  50:00:00:00:00:00:00:00 to 5F:FF:FF:FF:FF:FF:FF:FF.  All other WWN ranges are reserved. Cisco recommend to use WWN prefix for all blocks in a pool: 20:00:00:25:B5:XX:XX:XX . In this article ,we will see that how to create WWNN pool and WWPN pool in the Cisco UCS Manager GUI.

Creating WWNN POOL :



1. Login to Cisco UCS Manager

2. Navigate to SAN – > Pools – >root->Sub-Organization .

WWNN Pool creation
WWNN Pool creation



3. Right click WWNN pools amd right click “Create WWNN Pool” .

WWNN Pool creation
WWNN Pool creation



3. Enter the WWNN pool name and description.

WWNN Pool creation
WWNN Pool creation



4. Click on “Add” icon.

WWNN Pool creation
WWNN Pool creation



5. Enter the Range of the WWNN blocks and size. Assume that if you want to have two servers on the  same pool , so you need to create 2×2 WWN block.

Enter the WWNN Blocks
Enter the WWNN Blocks



6. Click Finish to create the WWNN pool.

WWNN Pool creation
WWNN Pool creation

You will get the pop-up like below based on successful completion.

WWNN Pool creation
WWNN Pool creation



7. You can see the WWNN pool information like below.

WWNN Pool creation
WWNN Pool creation



Creating WWPN POOL : (For Fabric A)

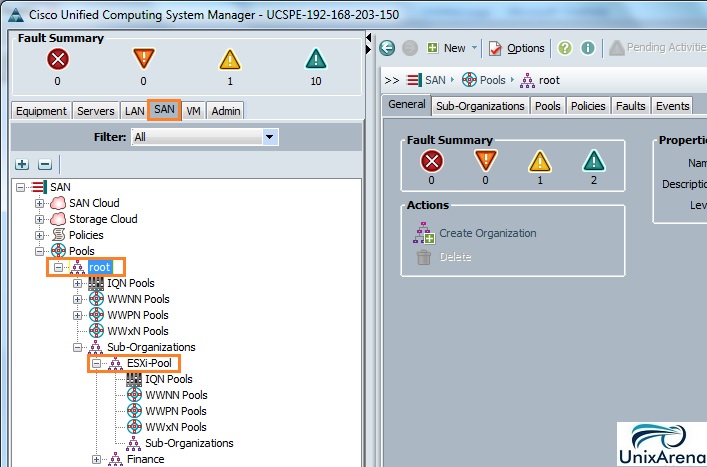

1. Navigate to SAN – > Pools – >root->Sub-Organization – > ESXi-Pool

Create WWPN pool

Create WWPN pool



2. Right Click “WWPN Pool” and select “Create WWPN Pool” .

create WWPN pool
create WWPN pool



3. Enter the WWPN pool name (Add “A” in the end of the pool to represent Fabric A) and description.

Create WWPN pool
Create WWPN pool



4. Select “Add ” and enter the first WWPN’s block and specify the size.

Create WWPN pool - Fabric - A
Create WWPN pool – Fabric – A



5. Click finish to complete the wizard.

Create WWPN pool
Create WWPN pool



You will get pop-up like below based on successful completion.



Creating WWPN POOL : (For Fabric B)



Create an another pool for fabric B.

1. Right click the “WWPN Pools” and select “Create WWPN Pool” .

Create WWPN pool - Fabric B
Create WWPN pool – Fabric B



2. Enter the WWPN Pool name (Ending with “B” since it will be used for Fabric B) and enter description.

Create WWPN pool
Create WWPN pool



3. Click on “Add” .

Create WWPN pool
Create WWPN pool



Enter the WWPN first block and specify the size.

Create WWPN pool  - Fabric B
Create WWPN pool – Fabric B



4. Click Finish to complete the wizard.

Create WWPN pool
Create WWPN pool



On successful creation of the WWPN pool, you will get pop-up like below.

Create WWPN pool
Create WWPN pool



At the end of WWPN pools creation for Fabric A/B , you can see like below.

Create WWPN
Create WWPN



Hope this article informative to you .
