Sun ZFS Storage appliance – Administration

This article explains how to create ISCSI targets, LUNS and filesystem  from scratch in ZFS storage appliance which is the common storage on oracle supercluster. ISCSI protocol works in server-client model where ISCSI target will act as a server and initiator will act as a client. This communication happens through IP network. In Oracle supercluster, we have infiniband network which provides up to 32Gb/s speed (Ethernet over Infiniband).So you no need to worry about the network performance between ZFS storage appliance and SPARC systems. Here we will see some of the common administration tasks in ZFS Storage appliance.

 How to create the storage pool on ZFS storage appliance ?

1. Login to ZFS storage appliance web portal .

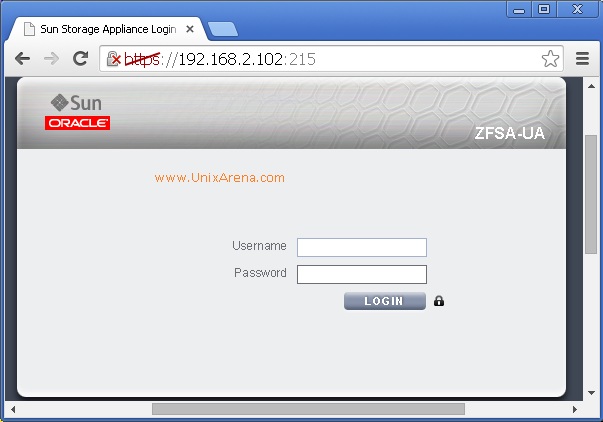

ZFS storage Appliance - Weblogin
ZFS storage Appliance – Web-login

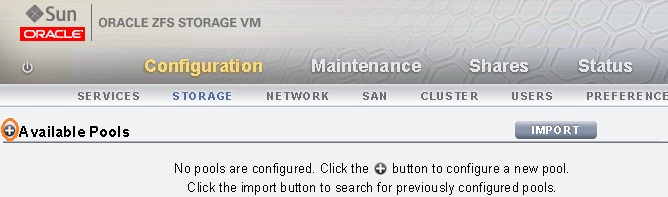

2.Navigate to Configuration  – > Storage  – > Click on “+ symbol to add new pool

Adding New Pool
Adding New Pool

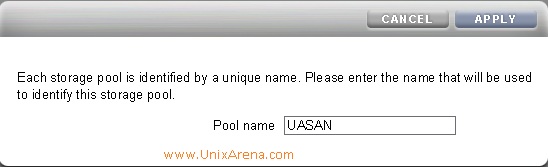

3.Enter the pool name and click on apply.

Enter the pool name
Enter the pool name

4. Select the number disks which should be part of this pool and commit.

Enter the number of disks
Enter the number of disks

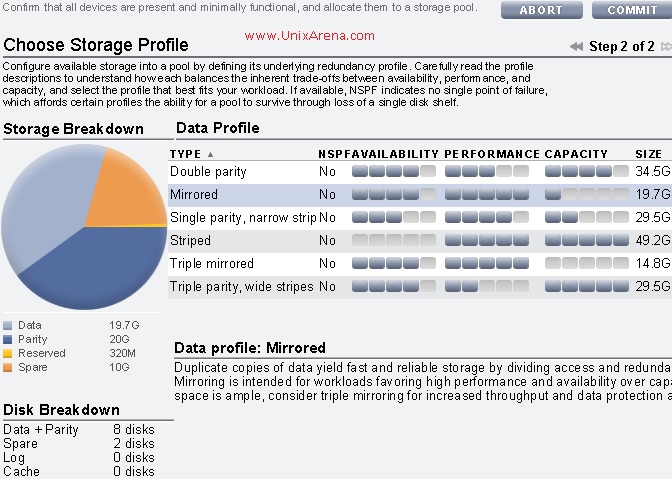

5.Select the data profile for this pool  and commit to create pool.

Select the Data profile
Select the Data profile

The above picture gives you clear idea that what will happen if you choose any of the profiles. For an example, if you choose “Striped” profile, you will get 100% capacity and performance but there is no redundancy. Here , i have selected “Mirrored” profile which provides availability and performance but i can use 50% of storage size.   See in the “Storage Break-down Graph”.

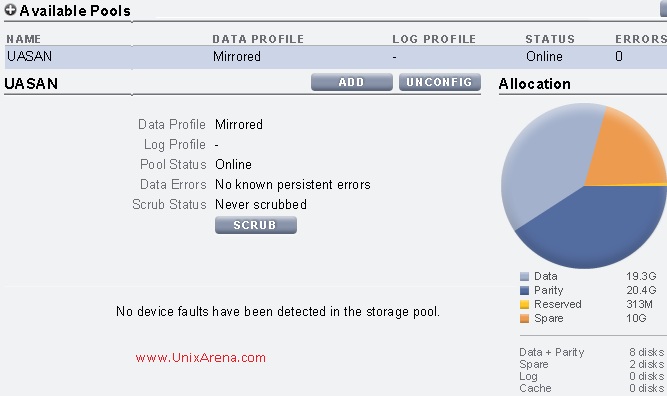

Here you can see that new pool has been created and its “online” .

Pool status
Pool status

How to Create ISCSI Targets on ZFS storage appliance ?

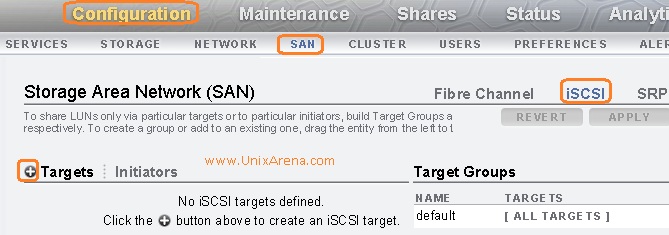

1. Click on the configuration tab and select “SAN” . Select ISCSI in the right side tab .

Create new Target
Create new Target

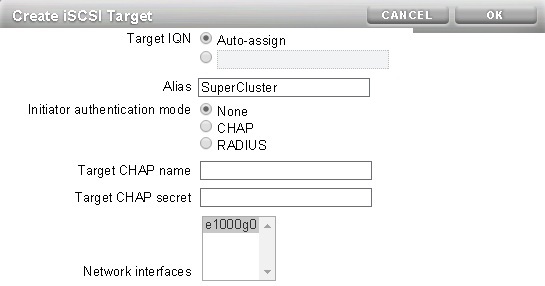

2.Let the system assign the unique target id. In the alias , Just enter the meaning full name where you are going to provide this target.In my case, i am going to assign this target to supercluster systems.Click OK to create target.

Target IQN  - Auto Assign
Target IQN – Auto Assign

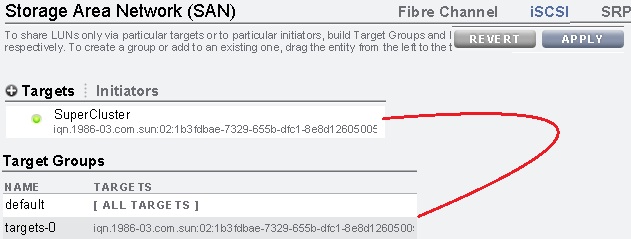

3.Once the target is created, you need to drag the newly created target to “Target Groups”

Drag the newly created target to Target Groups
Drag the newly created target to Target Groups

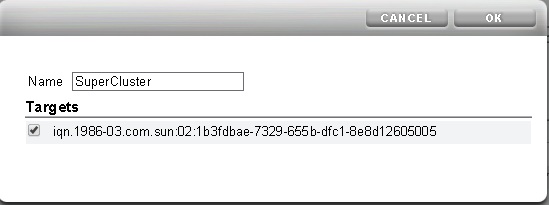

4.Just modify the target group name for which you have dragged. Click on Edit symbol .

Modify the Target Name
Modify the Target Name

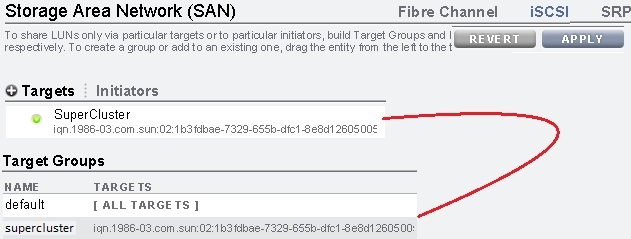

5.You can see the target groups like below .

After modifying the TG
After modifying the TG



How to create the ISCSI LUNS to Specific target group ?

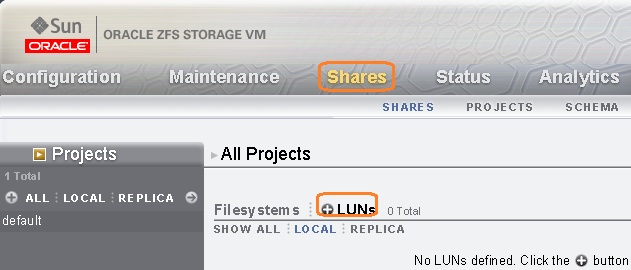

1.Click on Shares and click the “+” which is next to “LUNs” .

Adding New LUN
Adding New LUN

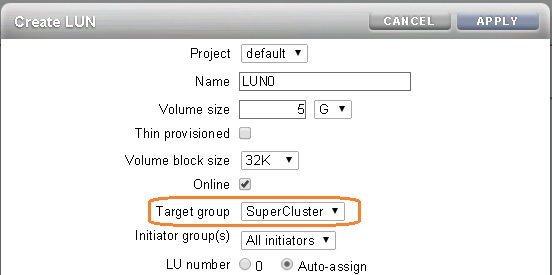

2.Enter the LUN name and size. Select the target group and click apply.

Enter LUN name and size
Enter LUN name and size

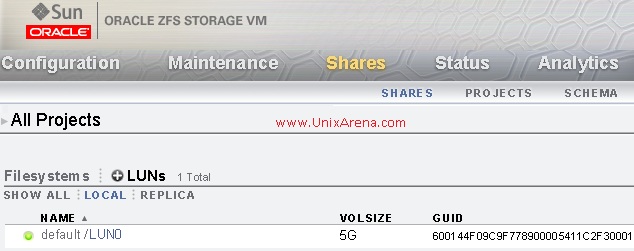

3. LUN is ready .

LUN is ready
LUN is ready

How to add the ISCSI targets in Oracle Solaris 11  to use the ISCSI LUNS which you have created in ZFS storage appliance ?

1. Login to Oracle Solaris 11 node and check whether ZFS storage appliance is reachable.

root@SAN:~# ping 192.168.2.102
192.168.2.102 is alive
root@SAN:~#

2.Enable the ISCSI initiator service if its not already online.

root@SAN:~# svcs -a |grep iscsi
disabled       15:59:39 svc:/network/iscsi/target:default
online         16:00:01 svc:/network/iscsi/initiator:default
root@SAN:~#

3.Add the ISCSI target to the system.(To know the target, check step no 5  – above )

root@SAN:~# iscsiadm add static-config iqn.1986-03.com.sun:02:1b3fdbae-7329-655b-dfc1-8e8d12605005,192.168.2.102:3260
root@SAN:~# iscsiadm list static-config
Static Configuration Target: iqn.1986-03.com.sun:02:1b3fdbae-7329-655b-dfc1-8e8d12605005,192.168.2.102:3260
root@SAN:~#

4.Enable the ISCSI discovery .

root@SAN:~# iscsiadm modify discovery -s enable
root@SAN:~#

5.Scan the device at OS level

root@SAN:~# devfsadm -iv iscsi

6.Check in format command output.

root@SAN:~# echo |format
Searching for disks...done
AVAILABLE DISK SELECTIONS:
       0. c0t600144F09C9F778900005411C2F30001d0
          /scsi_vhci/disk@g600144f09c9f778900005411c2f30001
       1. c8t0d0 <VMware,-VMware Virtual S-1.0-16.00GB>
          /pci@0,0/pci15ad,1976@10/sd@0,0
       Specify disk (enter its number): Specify disk (enter its number):
root@SAN:~#

7.You can create zpool on the iscsi lun and use it.

root@SAN:~# zpool create UA-POOL c0t600144F09C9F778900005411C2F30001d0
root@SAN:~# zpool status UA-POOL
  pool: UA-POOL
 state: ONLINE
  scan: none requested
config:
        NAME                                     STATE     READ WRITE CKSUM
        UA-POOL                                  ONLINE       0     0     0
          c0t600144F09C9F778900005411C2F30001d0  ONLINE       0     0     0
errors: No known data errors
root@SAN:~#

 How to create NFS share in ZFS storage appliance ?

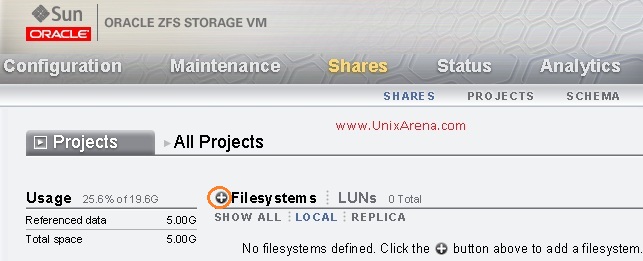

1.Click on shares and click the “+” which is next to the filesystems.

Creating the new Share
Creating the new Share

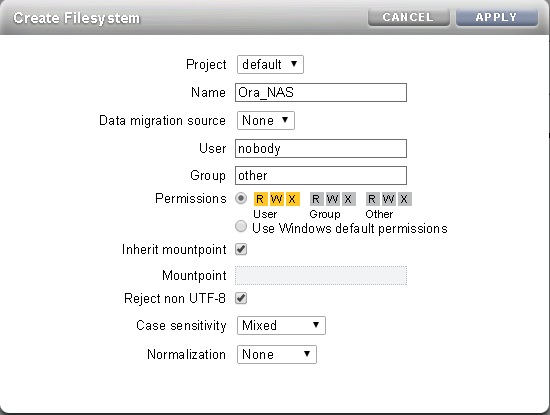

2.Enter the share name and select the filesystem options.Click apply to create the share.

Share Name and Options
Share Name and Options

3.You can see share like below .

NFS Share on ZFS storage appliance
NFS Share on ZFS storage appliance

4.You can set the limit for this share in general tab like below. So that this share can’t grow more than what we are defining here.

Share Quota and Reservation
Share Quota and Reservation

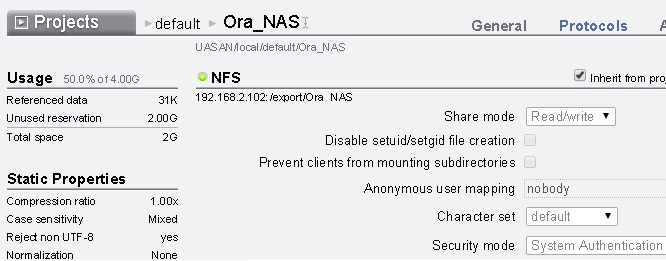

5.Click on the protocol tab  to set the NFS options.

NFS options
NFS options

We have successfully create the NFS share on ZFS storage appliance. you can mount this share on the client like below.

root@UA-SC:~# mkdir /ORA_NAS
root@UA-SC:~# mount -F nfs 192.168.2.102:/export/Ora_NAS /ORA_NAS
root@UA-SC:~# df -h /ORA_NAS
Filesystem             Size   Used  Available Capacity  Mounted on
192.168.2.102:/export/Ora_NAS
                       2.0G    31K       2.0G     1%    /ORA_NAS
root@UA-SC:~# showmount 192.168.2.102
root@UA-SC:~# dfshares 192.168.2.102
RESOURCE                                  SERVER ACCESS    TRANSPORT
192.168.2.102:/export/Ora_NAS          192.168.2.102  -         -
root@UA-SC:~#
