How to Create a server pool on oracle VM?

In oracle VM for x86 series , we have already seen the installation of oracle VM server and Oracle VM manager. Once you have completed the installation of those softwares, you need to add the oracle VM servers in to oracle VM manager to manage those server.You need to discover the oracle VM servers from OVM console and create a new server pool which is basic entity in oracle VM. You must create a server pool, even though if you have single oracle VM server. You can create a N number of server pools according your requirement. Typically all the server pools will be clustered and virtual machines can be live-migrated to balance the load across the physical machines aka OVM servers.

Here we will see how to discover the oracle VM servers and how to create a new server pool.

Oracle VM for x86 version : 3.0.3

1.Open the browser and enter the Oracle VM manager IP and port number 7001. If you are using https, then port number should be 7002.

OVM console Login
OVM console Login

2.Once you have logged in ,You will get home tab like below one.

OVM console Home Page
OVM console Home Page

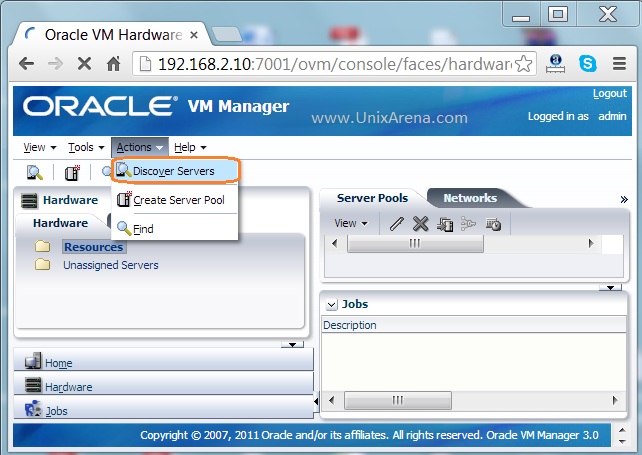

3.Click on the hardware tab . From the Top menu, click on Action and Discover servers.

Discover the OVS servers  using IP range
Discover the OVS servers

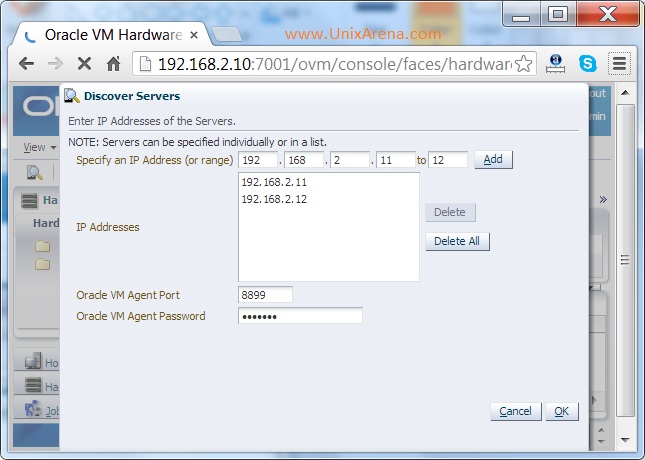

4.Enter the IP’s of the OVM servers. Its better to give server IP instead of giving the wide range. This operation is not very fast.You have to provide the oracle VM servers , VM agent password. Not a root password of oracle VM server.

Discover the OVS servers with IP range
Discover the OVS servers with IP range

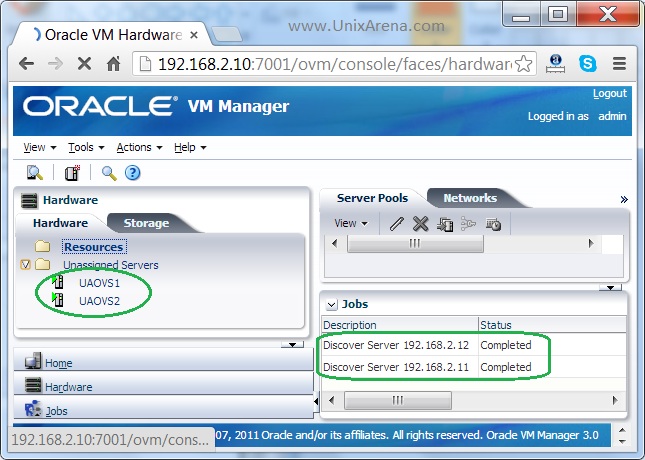

5.Once the servers are added, you can see the OVS servers are in unassigned directory.

OVS Servers added to OVM
OVS Servers added to OVM

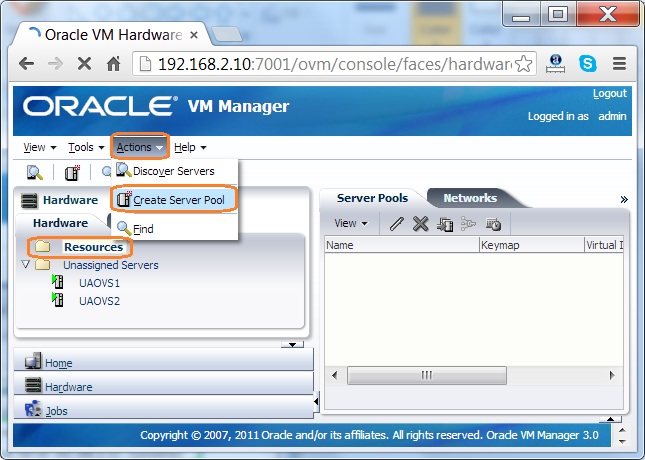

6.To create the new serveer pool, just click on the Resource and from top menu, select Action – > Create server pool.

Creating the oracle VM server pool
Creating the oracle VM server pool

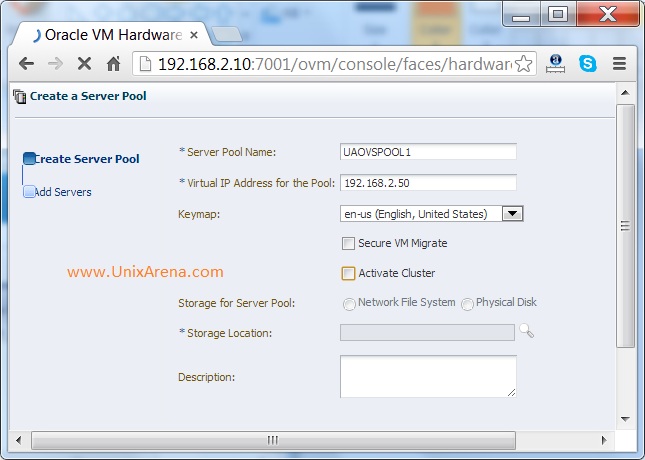

7.Enter the server pool name and enter the new virtual IP for server pool. Here you can activate the cluster if you want .If you activate the cluster , you need to provide the NFS share or physical LUN to store the cluster information. Here I am creating the server pool without cluster.

Enter the server pool name
Enter the server pool name

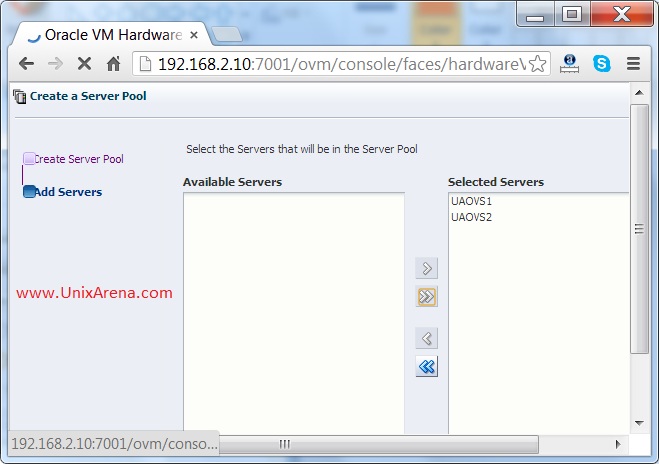

8.Add the oracle VM servers to the server pool.

Adding the servers to server pool
Adding the servers to server pool

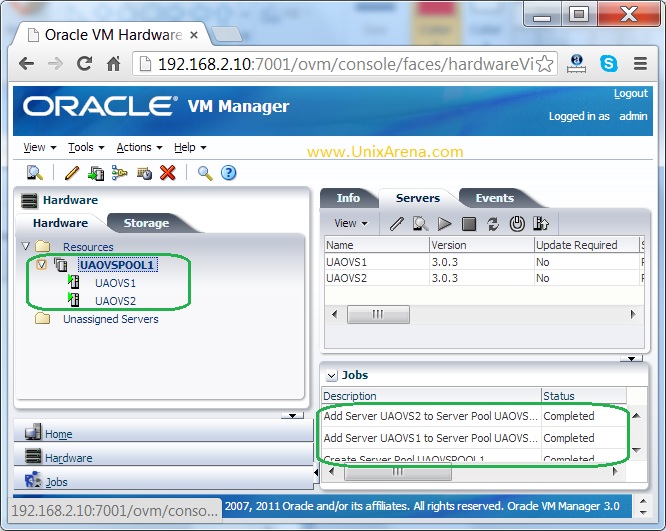

9.Once the operation is completed,you can see the new server pool under resource folder. Here you can see both the OVS servers moved from unassigned to pool.

New Server pool is ready for use
New Server pool is ready for use

We have successfully created the oracle VM server pool. But the one we have created is a non-cluster .By default oracle VM server pool will be clustered.

Click on page 2  to see how to create the OVM cluster server pool.
