LDOM Oracle VM for SPARC – Tutorial 1

SUN LDOMS aka oracle VM for SPARC is a complete virtual machines that runs an independent operating systems and  contains its own virtual CPU’s,Storage,Memory, Cryptographic and console.Unlike Solaris zones,LDOMS can run its own operating system with different kernel patch levels. You can also install Solaris 8,Solaris 9 ,Solaris 10 and Solaris 11 on LDOMS. LDOM also provides the OBP for each logical domains but we won’t get that in zones. LDOM also allow to move the resources across the logical domains  or virtual hosts exclusively. LDOM also allows you to configure zones under that.

Tutorials Topics:

Prerequisite:

  • Oracle/Sun T-series Server (T5140 Firmware:7.3.3 )
  • Solaris 10 or Solaris 11 (To be directly installed on T-series server)
  • LDOM Packages (Ex: 2.1)
  • Server Hardware Console Access
Contents:

  • Basic Concepts of LDOM
  • Installation of LDOM Software
  • Configuring the Service Domains
  • Configuring the Control Domains
  • Saving the SP-Profile
Basic Concepts of LDOM or Oracle VM for SPARC:

LDOM is a hardware based virtualization  which works on top the hypervisor. To understand better, you should know the type of terms used in LDOM or oracle VM for SPARC.

  • Control Domain is the place where you are going to install the LDOM software and managing the complete logical domain environment.It used to configure the resources and guest domains
  • Service domain provides the various virtual services to guest domains.Virtaul services can be virtual disks,network switches or virtual consoles.Mostly we will be configuring the control domain as service domain too.
  • I/O Domains have a direct ownership of PCI Bus.You need to directly map the I/O devices to guest domain to improve the application performance in some cases. There is an another domain called “root domain” and this domain has direct ownership of PCI devcies. So it also called I/O domain.
  • Guest domains doesn’t performing any of the above mentioned roles.It jsut runs the operating system instances.
  • Control domain and service domain can be run together.But the user application should not be installed on this domain in a order to protect domain stability and performance.

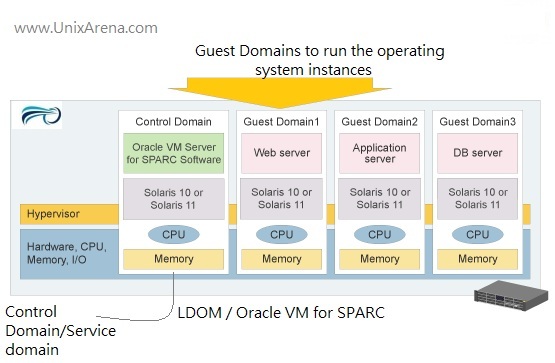

LDOM Basic concept
LDOM Basic concept

Installation of LDOM software:

Download the LDOM packages from the oracle support website. For your information ,you can’t download without having the oracle support login credentials. Once you have downloaded the packages ,just copy the packages to the Solaris host which you have already installed on T- series server.

1.The below mentioned packages needs to be installed .

-rwxr-xr-x   1 root     root     3564851 Jan 16 23:26 OracleVM-Server-for-SPARC-2.0.0_(64-bit).zip
drwxrwxrwx   5 root     root         512 Jan 16 23:26 SUNWldomr.v
drwxrwxrwx   5 root     root         512 Jan 16 23:26 SUNWldomu.v

2.Install the SUNWldomr and SUNWldomu packages first.

-bash-3.2# pkgadd -d . SUNWldom*

Processing package instance  from </>

Solaris Logical Domains (Root)(sparc.sun4v) 11.10.0,REV=2006.10.04.00.26
Copyright (c) 2011, Oracle and/or its affiliates. All rights reserved.

This appears to be an attempt to install the same architecture and
version of a package which is already installed.  This installation
will attempt to overwrite this package.

Using </> as the package base directory.
## Processing package information.
## Processing system information.
   42 package pathnames are already properly installed.
## Verifying package dependencies.
## Verifying disk space requirements.
## Checking for conflicts with packages already installed.
## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user
permission during the process of installing this package.

Do you want to continue with the installation of  [y,n,?] y

Installing Solaris Logical Domains (Root) as

## Executing preinstall script.
## Installing part 1 of 1.
[ verifying class  ]
## Executing postinstall script.

Installation of  was successful.

Processing package instance  from </>

Solaris Logical Domains (Usr)(sparc.sun4v) 11.10.0,REV=2006.08.08.12.13
Copyright (c) 2011, Oracle and/or its affiliates. All rights reserved.

This appears to be an attempt to install the same architecture and
version of a package which is already installed.  This installation
will attempt to overwrite this package.

Using </> as the package base directory.
## Processing package information.
## Processing system information.
   11 package pathnames are already properly installed.
## Verifying package dependencies.
## Verifying disk space requirements.
## Checking for conflicts with packages already installed.
## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user
permission during the process of installing this package.

Do you want to continue with the installation of  [y,n,?] y

Installing Solaris Logical Domains (Usr) as

## Installing part 1 of 1.

Installation of  was successful.
-bash-3.2#

3.Install the LDOM software . Unzip the package and continue the installation like below

-bash-3.2# cd OVM_Server_SPARC-2_0
-bash-3.2# ls -lrt
total 12
-r--r--r--   1 root     root        3368 Sep 17  2010 README
drwxr-xr-x   2 root     root         512 Sep 18  2010 Install
drwxr-xr-x   7 root     root         512 Dec 16  2010 Product
-bash-3.2# cd Install/
-bash-3.2# ls -lrt
total 56
-rwxr-xr-x   1 root     root       28471 Sep 18  2010 install-ldm
-bash-3.2# ./install-ldm

Welcome to the Oracle VM Server for SPARC installer.

You are about to install the LDoms Manager package, SUNWldm, that will enable
you to create, destroy and control other domains on your system. You will
also be given the option of running the Oracle VM Server for SPARC Configuration
Assistant (ldmconfig) to setup the control domain and create guest domains.

If the Solaris Security Toolkit (SST) is installed, you will be prompted to
optionally harden your control domain.

Installing LDoms packages.
pkgadd -n -d "/OVM_Server_SPARC-2_0/Product" -a pkg_admin SUNWldm.v
Copyright (c) 2010, Oracle and/or its affiliates. All rights reserved.
Feb 17 10:37:54 sol10-10 sendmail[2631]: [ID 702911 mail.alert] unable to qualify my own domain name (sol10-10) -- using short name

Installation of  was successful.
pkgadd -n -d "/OVM_Server_SPARC-2_0/Product" -a pkg_admin SUNWldmp2v
Copyright (c) 2010, Oracle and/or its affiliates. All rights reserved.
Feb 17 10:38:54 sol10-10 sendmail[2705]: [ID 702911 mail.alert] unable to qualify my own domain name (sol10-10) -- using short name

Installation of  was successful.

Oracle VM Server for SPARC Configuration

Once installed, you may configure your system for a basic LDoms
deployment.  If you select "y" for the following question, the Oracle
VM Server for SPARC Configuration Assistant (tty) will be launched
following a successful installation of the packages.

(You may launch the Configuration Assistant at a later time with the
command:  /usr/sbin/ldmconfig, or use the GUI Configuration Assistant
which is bundled in the Oracle VM Server for SPARC zip file - see
README.GUI for more details)

Select an option for configuration:

y) Yes, launch the Configuration Assistant after install
n) No thanks, I will configure the system manually later

Enter y or n [y]: n

Verifying that all packages are fully installed.  OK.
You have new mail in /var/mail//root
-bash-3.2#

Configuring the Service Domains:

Login to the Solaris host where you have installed the LDOM or oracle VM software.

1.List the configured services.By default it will be nothing.

-bash-3.2# ldm list-services

2.Create a new virtual disk service.This service is responsible to provide the virtual disks to guest domains.

-bash-3.2# ldm add-vdiskserver primary-vds0 primary
-bash-3.2# ldm list-services
VDS
    NAME             LDOM             VOLUME         OPTIONS          MPGROUP        DEVICE
    primary-vds0     primary
-bash-3.2#

3.Create a new virtual switch. By creating this , we can create N-number of VNIC and share to the guest domains.

-bash-3.2# dladm show-dev
nxge0           link: up        speed: 1000  Mbps       duplex: full
nxge1           link: up        speed: 1000  Mbps       duplex: full
nxge2           link: up        speed: 1000  Mbps       duplex: full
nxge3           link: up        speed: 1000  Mbps       duplex: full
-bash-3.2# ifconfig -a
lo0: flags=2001000849<UP,LOOPBACK,RUNNING,MULTICAST,IPv4,VIRTUAL> mtu 8232 index 1
        inet 127.0.0.1 netmask ff000000
nxge0: flags=1000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 1500 index 2
        inet 192.168.2.11 netmask ff000000 broadcast 192.168.2.255
        ether 0:21:98:57:cd:16
-bash-3.2# ldm add-vswitch net-dev=nxge1 primary-vsw0 primary
-bash-3.2#
-bash-3.2# ldm list-services
VSW
    NAME             LDOM             MAC               NET-DEV   ID   DEVICE     LINKPROP   DEFAULT-VLAN-ID PVID VID                  MTU   MODE
    primary-vsw0     primary          00:14:4f:f9:05:b1 nxge1     0    switch@0              1               1                         1500

VDS
    NAME             LDOM             VOLUME         OPTIONS          MPGROUP        DEVICE
    primary-vds0     primary

-bash-3.2#

Here i have configured virtual switch using “nxge1” . You can also use “nxge0” configure the virtual swtich but you need to remove the IP from nxge0 and need to configure the IP over virtual switch.

-bash-3.2# ifconfig -a
lo0: flags=2001000849<UP,LOOPBACK,RUNNING,MULTICAST,IPv4,VIRTUAL> mtu 8232 index 1
        inet 127.0.0.1 netmask ff000000
vsw0: flags=1000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 1500 index 3
        inet 198.168.2.11 netmask ff000000 broadcast 192.168.2.255
        ether 0:14:4f:98:83:f3
-bash-3.2#

4.Create a virtual service for terminal consoles.

-bash-3.2# ldm add-vconscon port-range=5000-5100 primary-vc0 primary
-bash-3.2# ldm list-services
VCC
    NAME             LDOM             PORT-RANGE
    primary-vc0      primary          5000-5100

VDS
    NAME             LDOM             VOLUME         OPTIONS          MPGROUP        DEVICE
    primary-vds0     primary

-bash-3.2#
VSW
    NAME             LDOM             MAC               NET-DEV   ID   DEVICE     LINKPROP   DEFAULT-VLAN-ID PVID VID                  MTU   MODE
    primary-vsw0     primary          00:14:4f:f9:05:b1 nxge1     0    switch@0              1               1                         1500

Now you have successfully configured the default services or service domain.

(Creating the spconfig is must after making any changes on the service.Otherwise you will loose the changes after the system power cycle.)

Configuring the control Domains:

You need to login to Solaris host where you have installed the ldom software to configure the control domain.

1.List the logical domain devices using ldm list-device -a command.You can see all the resource has been allocated to the primary domain.

bash-3.2# ldm list-devices -a
CORE
    ID      %FREE   CPUSET
    0       0       (0, 1, 2, 3, 4, 5, 6, 7)
    1       0       (8, 9, 10, 11, 12, 13, 14, 15)
    2       0       (16, 17, 18, 19, 20, 21, 22, 23)
    3       0       (24, 25, 26, 27, 28, 29, 30, 31)
    4       0       (64, 65, 66, 67, 68, 69, 70, 71)
    5       0       (72, 73, 74, 75, 76, 77, 78, 79)
    6       0       (80, 81, 82, 83, 84, 85, 86, 87)
    7       0       (88, 89, 90, 91, 92, 93, 94, 95)

VCPU
    PID     %FREE   PM
    0       0       no
    1       0       no
    2       0       no
    3       0       no
    4       0       no
    5       0       no
    6       0       no
    7       0       no
    8       0       no
    9       0       no
    10      0       no
    11      0       no
    12      0       no
    13      0       no
    14      0       no
    15      0       no
    16      0       no
    17      0       no
    18      0       no
    19      0       no
    20      0       no
    21      0       no
    22      0       no
    23      0       no
    24      0       no
    25      0       no
    26      0       no
    27      0       no
    28      0       no
    29      0       no
    30      0       no
    31      0       no
    64      0       no
    65      0       no
    66      0       no
    67      0       no
    68      0       no
    69      0       no
    70      0       no
    71      0       no
    72      0       no
    73      0       no
    74      0       no
    75      0       no
    76      0       no
    77      0       no
    78      0       no
    79      0       no
    80      0       no
    81      0       no
    82      0       no
    83      0       no
    84      0       no
    85      0       no
    86      0       no
    87      0       no
    88      0       no
    89      0       no
    90      0       no
    91      0       no
    92      0       no
    93      0       no
    94      0       no
    95      0       no

MAU
    ID      CPUSET                                  BOUND
    0       (0, 1, 2, 3, 4, 5, 6, 7)                primary
    1       (8, 9, 10, 11, 12, 13, 14, 15)          primary
    2       (16, 17, 18, 19, 20, 21, 22, 23)        primary
    3       (24, 25, 26, 27, 28, 29, 30, 31)        primary
    4       (64, 65, 66, 67, 68, 69, 70, 71)        primary
    5       (72, 73, 74, 75, 76, 77, 78, 79)        primary
    6       (80, 81, 82, 83, 84, 85, 86, 87)        primary
    7       (88, 89, 90, 91, 92, 93, 94, 95)        primary

MEMORY
    PA                   SIZE            BOUND
    0x0                  512K            _sys_
    0x80000              1536K           _sys_
    0x200000             94M             _sys_
    0x6000000            32M             _sys_
    0x8000000            96M             _sys_
    0xe000000            32544M          primary

IO
    DEVICE           PSEUDONYM        BOUND   OPTIONS
    pci@400          pci_0            yes
    pci@500          pci_1            yes

bash-3.2#

2.List what are the resources assigned to the primary domain or control domains.

bash-3.2# ldm list-bindings primary
NAME             STATE      FLAGS   CONS    VCPU  MEMORY   UTIL  UPTIME
primary          active     -n-c--  SP      64    32544M   0.1%  9m

UUID
    f063b0a8-8fb0-4e61-cd5b-91826d2c1550

MAC
    00:21:28:57:cd:16

HOSTID
    0x8557cd16

CONTROL
    failure-policy=ignore

DEPENDENCY
    master=

CORE
    CID    CPUSET
    0      (0, 1, 2, 3, 4, 5, 6, 7)
    1      (8, 9, 10, 11, 12, 13, 14, 15)
    2      (16, 17, 18, 19, 20, 21, 22, 23)
    3      (24, 25, 26, 27, 28, 29, 30, 31)
    4      (64, 65, 66, 67, 68, 69, 70, 71)
    5      (72, 73, 74, 75, 76, 77, 78, 79)
    6      (80, 81, 82, 83, 84, 85, 86, 87)
    7      (88, 89, 90, 91, 92, 93, 94, 95)

VCPU
    VID    PID    CID    UTIL STRAND
    0      0      0      1.5%   100%
    1      1      0      0.0%   100%
    2      2      0      0.0%   100%
    3      3      0      0.0%   100%
    4      4      0      0.0%   100%
    5      5      0      0.0%   100%
    6      6      0      0.0%   100%
    7      7      0      0.0%   100%
    8      8      1      0.0%   100%
    9      9      1      0.1%   100%
    10     10     1      0.0%   100%
    11     11     1      0.1%   100%
    12     12     1      0.1%   100%
    13     13     1      3.0%   100%
    14     14     1      0.0%   100%
    15     15     1      0.1%   100%
    16     16     2      0.1%   100%
    17     17     2      0.2%   100%
    18     18     2      0.1%   100%
    19     19     2      0.0%   100%
    20     20     2      0.1%   100%
    21     21     2      0.0%   100%
    22     22     2      0.1%   100%
    23     23     2      0.0%   100%
    24     24     3      0.0%   100%
    25     25     3      0.0%   100%
    26     26     3      0.0%   100%
    27     27     3      0.0%   100%
    28     28     3      0.2%   100%
    29     29     3      0.1%   100%
    30     30     3      0.1%   100%
    31     31     3      0.0%   100%
    64     64     4      0.0%   100%
    65     65     4      0.0%   100%
    66     66     4      0.0%   100%
    67     67     4      0.0%   100%
    68     68     4      0.0%   100%
    69     69     4      0.0%   100%
    70     70     4      0.0%   100%
    71     71     4      0.0%   100%
    72     72     5      0.0%   100%
    73     73     5      0.0%   100%
    74     74     5      0.0%   100%
    75     75     5      0.0%   100%
    76     76     5      0.0%   100%
    77     77     5      0.0%   100%
    78     78     5      0.0%   100%
    79     79     5      0.0%   100%
    80     80     6      0.0%   100%
    81     81     6      0.0%   100%
    82     82     6      0.0%   100%
    83     83     6      0.0%   100%
    84     84     6      0.0%   100%
    85     85     6      0.0%   100%
    86     86     6      0.0%   100%
    87     87     6      0.0%   100%
    88     88     7      0.0%   100%
    89     89     7      0.0%   100%
    90     90     7      0.0%   100%
    91     91     7      0.0%   100%
    92     92     7      0.0%   100%
    93     93     7      0.0%   100%
    94     94     7      0.0%   100%
    95     95     7      0.0%   100%

MAU
    ID     CPUSET
    0      (0, 1, 2, 3, 4, 5, 6, 7)
    1      (8, 9, 10, 11, 12, 13, 14, 15)
    2      (16, 17, 18, 19, 20, 21, 22, 23)
    3      (24, 25, 26, 27, 28, 29, 30, 31)
    4      (64, 65, 66, 67, 68, 69, 70, 71)
    5      (72, 73, 74, 75, 76, 77, 78, 79)
    6      (80, 81, 82, 83, 84, 85, 86, 87)
    7      (88, 89, 90, 91, 92, 93, 94, 95)

MEMORY
    RA               PA               SIZE
    0xe000000        0xe000000        32544M

IO
    DEVICE           PSEUDONYM        OPTIONS
    pci@400          pci_0
    pci@500          pci_1

VCONS
    NAME             SERVICE                     PORT
    SP

bash-3.2#

3.Set the resource control for the control domain aka primary domain.So the resource will be freed up for the logical domains / Guest domains.

bash-3.2# ldm set-mau 1 primary
bash-3.2# ldm set-vcpu 8 primary
bash-3.2# ldm set-memory 4G primary
A ldm set-mem 4G command would remove 28448MB, which is not a
multiple of 256MB. Instead, run ldm set-mem 4128M primary
to ensure a 256MB alignment.
bash-3.2# ldm set-memory 3872M primary
  • mau – Security Encryption (LDM commands will be sent in encrypted manner.)
  • vpcu – Virtual CPU cores
  • memory – Physical memory

4.Now list the devices again to verify the new settings.

bash-3.2# ldm ls-devices -a
CORE
    ID      %FREE   CPUSET
    0       0       (0, 1, 2, 3, 4, 5, 6, 7)
    1       100     (8, 9, 10, 11, 12, 13, 14, 15)     ----------->(1-7) Free CPU cores
    2       100     (16, 17, 18, 19, 20, 21, 22, 23)
    3       100     (24, 25, 26, 27, 28, 29, 30, 31)
    4       100     (64, 65, 66, 67, 68, 69, 70, 71)
    5       100     (72, 73, 74, 75, 76, 77, 78, 79)
    6       100     (80, 81, 82, 83, 84, 85, 86, 87)
    7       100     (88, 89, 90, 91, 92, 93, 94, 95)

VCPU
    PID     %FREE   PM
    0       0       no   ----------These (0-7) CPU is not available since its assigned to primary domain
    1       0       no
    2       0       no
    3       0       no
    4       0       no
    5       0       no
    6       0       no
    7       0       no
    8       100     ---
    9       100     ---
    10      100     ---
    11      100     ---
    12      100     ---
    13      100     ---
    14      100     ---
    15      100     ---
    16      100     ---
    17      100     ---
    18      100     ---
    19      100     ---
    20      100     ---
    21      100     ---
    22      100     ---
    23      100     ---
    24      100     ---
    25      100     ---
    26      100     ---
    27      100     ---
    28      100     ---
    29      100     ---
    30      100     ---
    31      100     ---
    64      100     ---
    65      100     ---
    66      100     ---
    67      100     ---
    68      100     ---
    69      100     ---
    70      100     ---
    71      100     ---
    72      100     ---
    73      100     ---
    74      100     ---
    75      100     ---
    76      100     ---
    77      100     ---
    78      100     ---
    79      100     ---
    80      100     ---
    81      100     ---
    82      100     ---
    83      100     ---
    84      100     ---
    85      100     ---
    86      100     ---
    87      100     ---
    88      100     ---
    89      100     ---
    90      100     ---
    91      100     ---
    92      100     ---
    93      100     ---
    94      100     ---
    95      100     ---

MAU
    ID      CPUSET                                  BOUND
    0       (0, 1, 2, 3, 4, 5, 6, 7)                primary
    1       (8, 9, 10, 11, 12, 13, 14, 15)
    2       (16, 17, 18, 19, 20, 21, 22, 23)
    3       (24, 25, 26, 27, 28, 29, 30, 31)
    4       (64, 65, 66, 67, 68, 69, 70, 71)
    5       (72, 73, 74, 75, 76, 77, 78, 79)
    6       (80, 81, 82, 83, 84, 85, 86, 87)
    7       (88, 89, 90, 91, 92, 93, 94, 95)

MEMORY
    PA                   SIZE            BOUND
    0x0                  512K            _sys_
    0x80000              1536K           _sys_
    0x200000             94M             _sys_
    0x6000000            32M             _sys_
    0x8000000            96M             _sys_
    0xe000000            32M             primary
    0x10000000           28G   -----------------------------Free Memory
    0x710000000          3840M           primary -----------Allocated to Primary or control Domain

IO
    DEVICE           PSEUDONYM        BOUND   OPTIONS
    pci@400          pci_0            yes
    pci@500          pci_1            yes

bash-3.2#

You have successfully configured the control domain.

Note:Here you haven’t saved the configuration.These are all in-memory configuration.After the power cycle, you will loose the configuration if its not saved in sp config profile.

Saving the sp-config file:

You have to save the configuration after every ldom settings that you made. For an example, if you didn’t save, ldom configuration will be flushed after server power cycle.

1.Create a new profile the current configuration.

bash-3.2# ldm add-spconfig unixarena
bash-3.2# ldm ls-spconfig
factory-default
unixarena [current]
bash-3.2#

In the above command output, you can see that currents settings are saved in unixarena and this settings will come up after the system reboot and power cycle.

For an example , if i do any small changes on ldom ,it will not update in the spconfig file.

bash-3.2# ldm set-vcpu 12 primary
bash-3.2# ldm ls-spconfig
factory-default
unixarena [next poweron]
bash-3.2#

Here we just increased the number vpcus to 12 . The previous number of vpcu was 8. Here sp-config file “unixarena” will be activated on next power cycle. Which mean you will loose the cpu setting you just done. In a order to save the configuration, just re-create the sp-config like below.

bash-3.2# ldm ls-spconfig
factory-default
unixarena [next poweron]
bash-3.2# ldm remove-spconfig unixarena
bash-3.2# ldm ls-spconfig
factory-default [next poweron]
bash-3.2# ldm add-spconfig unixarena_new
bash-3.2#  ldm ls-spconfig
factory-default
unixarena_new [current]
bash-3.2#

Checking the OBP,Hypervisor and LDOM version:

-bash-3.2# ldm -V

Logical Domain Manager (v 2.0)
        Hypervisor control protocol v 1.4
        Using Hypervisor MD v 1.1

System PROM:
        Hypervisor      v. 1.7.4.       @(#)Hypervisor 1.7.4.a 2009/09/21 08:25\015

        OpenBoot        v. 4.30.4       @(#)OBP 4.30.4 2009/08/19 07:25
-bash-3.2#

Hope this article is first step to learn LDOM for Solaris beginners.In this article we have seen the basic concepts of oracle VM for SPARC (LDOM), packages installation,configuration the service domain,configuring the control domain or primary domain and saving the sp-configuration.

I will try to complete  the tutorial by adding another 6 to 8 articles. Hope you will like it . Please share it  in social media to reach maximum number of people. Thank you for visiting UnixArena

LDOM Tutorial Part 2 – Configuring the guest domain

VMTURBO-CLOUD-CAPACITY

4 comments

  1. Hi thanks for the nice artice it really helpful
    can you please explain how to add the shared LUN to 2 different Ldoms, in cluster enviorment?
    or what is the best practice.?
    Thanks and cheers

  2. It’s Really helpful for beginners. Thanks for the same.

  3. Hi, while adding ” ldm set-mau 1 primary” Command getting following message. is this something capacity limited for 0?

    root@as# ldm set-mau 1 primary
    1 crypto units exceeds the system capacity of 0 crypto units

    Please advise,
    Hajee

  4. arup jyoti thakuria

    Great for beginners.Good work.

Leave a Reply

Your email address will not be published. Required fields are marked *
